Viewer

Overview

Viewer is a quick online viewer built with @manycore/aholo-viewer. It can import any supported asset and display the result directly. It also supports LOD-format data generated by @manycore/aholo-splat-transform.

Browsers cannot access local files directly. For chunk-lod data, host the files with a server or CDN. You can use @manycore/aholo-splat-dev-server for quick local hosting.

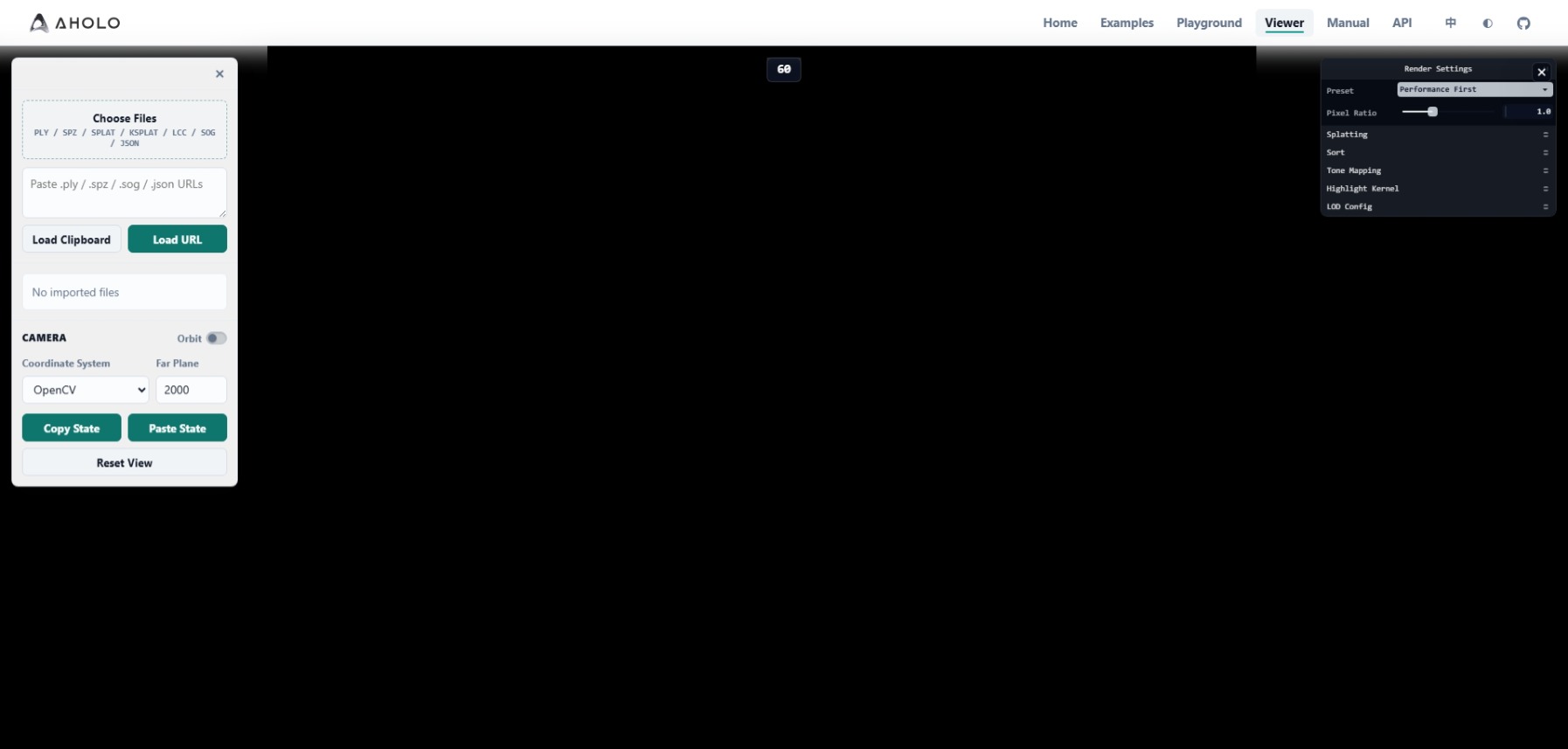

Usage Guide

• The left panel imports supported data formats and configures the camera.

  It supports local files, URLs, and clipboard data (URLs). Local data only supports a complete single asset and does not support chunk-lod data.

  The camera provides 3 switchable coordinate systems: OpenCV (-Y up, point-cloud coordinates), OpenGL (+Y up, common model coordinates), and Aholo (+Z up, the default coordinate system for Aholo platform data).

• The right panel controls 3DGS features and pipeline configuration. See 3dgs-preset-config.

Local Quick Validation Platform

Install Dependencies

npm install @manycore/aholo-splat-transform -g
npm install @manycore/aholo-splat-dev-server -g

Usage

For the full @manycore/aholo-splat-transform guide, see splat-transform.

@manycore/aholo-splat-dev-server

@manycore/aholo-splat-dev-server provides two executable commands. splat-dev-server starts a local hosting service for assets used by Viewer. merge-lod merges multiple lod-meta.json files and their related assets into one new lod-meta.json, which is useful for combining chunked processing results back into one large 3DGS chunk-lod dataset.

• splat-dev-server: starts a server for quickly hosting assets used by Viewer.

  splat-dev-server [options] <dir>
  Options:
     --help     Show help                                             [boolean]
     --version  Show version number                                   [boolean]
  -a, --address  Address to listen               [string] [default: "127.0.0.1"]
  -p, --port     Port to listen                         [number] [default: 3000]

  After startup, you should see output like this:

  ========================================
  Splat dev server started
  Host: 127.0.0.1:3000
  Root: ./chunk-lod
  Base URL: http://127.0.0.1:3000
  ========================================

  Access resources under Root through the Base URL, then enter that URL into the corresponding Viewer field.

  Note: When used in Viewer, the browser may ask for permission. Allow the request. Viewer does not access unhosted resources or collect any user information.

• merge-lod: merges multiple chunk-lod generation outputs into one result. It is usually used after generating chunk-lod in separate chunks and then merging them into a complete large chunk-lod dataset.

  merge-lod -i <meta-files...> -o <output_dir>

  Options:
       --help     Show help                                             [boolean]
       --version  Show version number                                   [boolean]
   -i, --input    Input lod meta files(lod-meta.json)          [array] [required]
   -o, --output   Output directory                            [string] [required]
